Semi Auto or Automatic Sauce Paste filling machine Solutions Manufacturer

JKPACK series piston fillers are designed to dispense a wide variety of sauce and paste products and serve as ideal filling machines for the cosmetic, pharmaceutical, food, pesticide and other industries. These kinds of pure pneumatic machines represent significant improvements based on our JKPACK series fillers. They are completely powered by air, which makes them especially suitable for an explosion-resistant or moist production environment.

All the components that come in contact with product are made of 316 L stainless steel imported, processed by CNC machines, and the surface roughness of which are ensured to be lower than 0.8.

Filling Machine Features

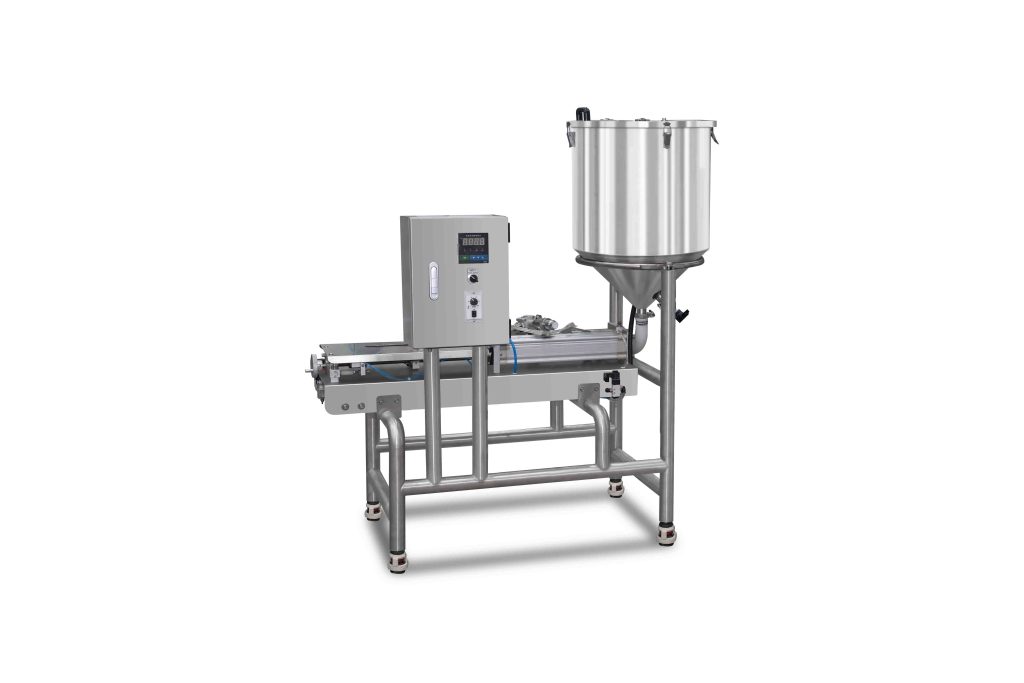

Sauce Paste Filling Machine - Overview

JKPACK series piston sauce paste filler machines are controlled by compressed air, so they are suitable in explosion-resistant or moist environments.
Because of the pneumatic controls and mechanical positioning, this series has a high filling accuracy.

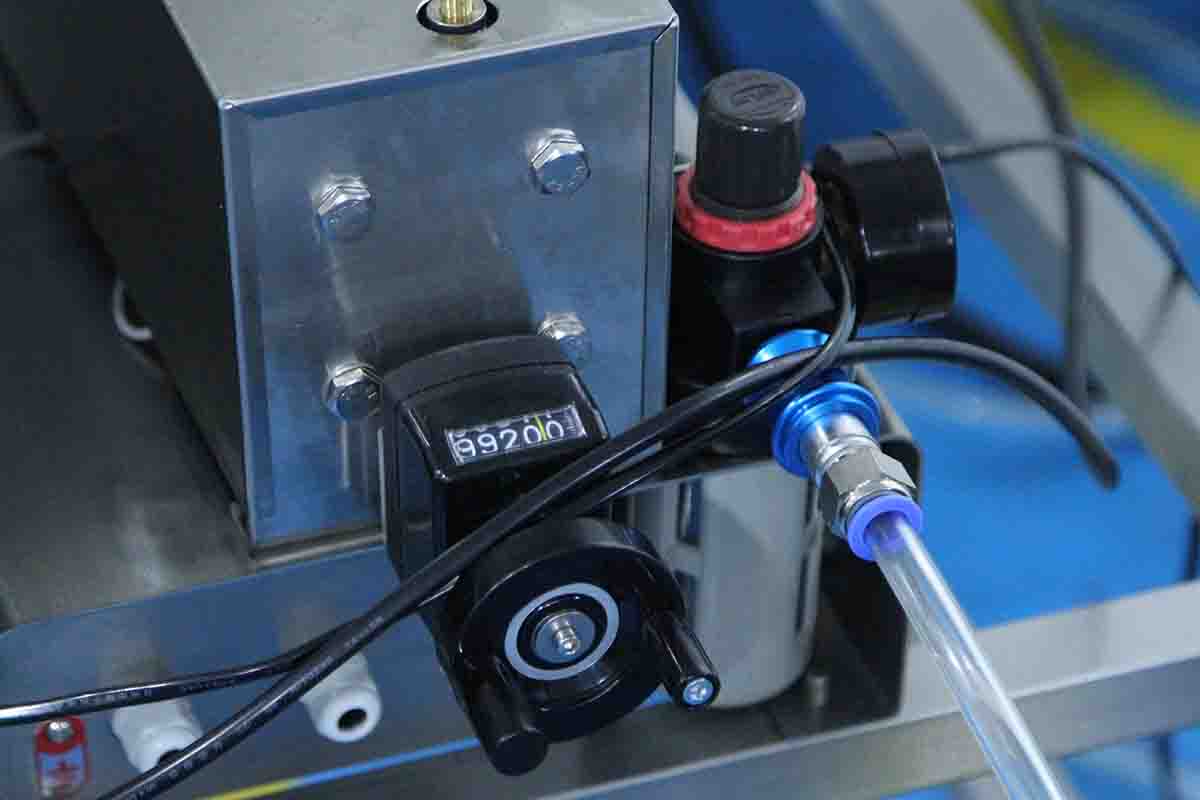

The filling volume is adjusted using screws and the counter, which provides ease of adjustment and allows the operator to read the real-time filling volume on the counter.

When you need to stop the machine in an emergency, push the URGENT button. The piston will go back to its initial location and the filling will be stopped immediately.
Two filling modes for you to choose—‘Manual’ and ‘Auto’.
Equipment malfunction is extremely rare.

Technical Parameters

Model	Filling Volume	Air Consumption (L/min)	Net Weight (kg)	Dimensions (cm)	Filling Speed	Filling Accuracy	Air Pressure
SVFA1-6	5 ~ 60 ml	23	11	L92×W28×H40	0~50 cpm	±5‰ (WATER >50% volume)	4–6 kg/cm²
SVFA1-12	10 ~ 120 ml	30	22	L92×W28×H40	0~50 cpm	±5‰ (WATER >50% volume)	4–6 kg/cm²
SVFA1-25	25 ~ 250 ml	44	25	L102×W30×H40	0~50 cpm	±5‰ (WATER >50% volume)	4–6 kg/cm²
SVFA1-50	50 ~ 500 ml	87	28	L108×W32×H41	0~50 cpm	±5‰ (WATER >50% volume)	4–6 kg/cm²
SVFA1-100	100 ~ 1000 ml	160	36	L128×W36×H41	0~50 cpm	±5‰ (WATER >50% volume)	4–6 kg/cm²
SVFA1-250	250 ~ 2500 ml	300	60	L130×W60×H51	0~50 cpm	±5‰ (WATER >50% volume)	4–6 kg/cm²
SVFA1-500	500 ~ 5000 ml	450	75	L130×W60×H51	0~50 cpm	±5‰ (WATER >50% volume)	4–6 kg/cm²

Case Video

Our Filling machine Detail

Standard Configuration

Dive into JKPACK diverse range of superior steel products. From manual filling machines to automatic filller machines, our offerings are designed to meet your business needs

Standard Configuration:Steel wire pipe (2 m / piece/ per filling machine)

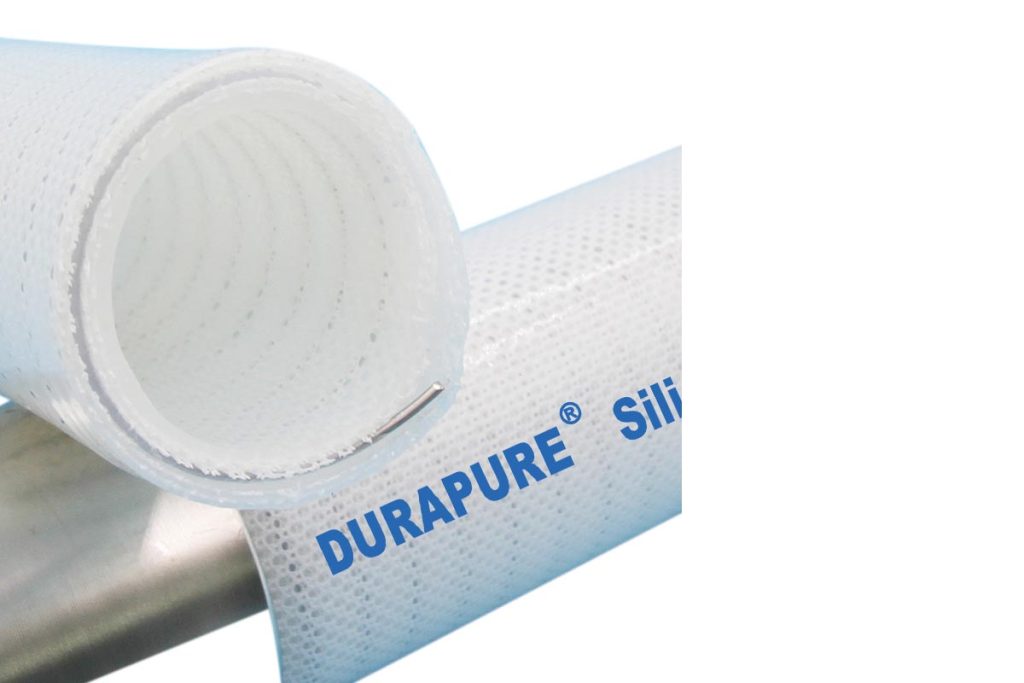

The food-grade silicone hose of the filling machine is non-toxic and odorless, resistant to high and low temperatures (-40℃ to 150℃), corrosion-resistant, soft and durable.

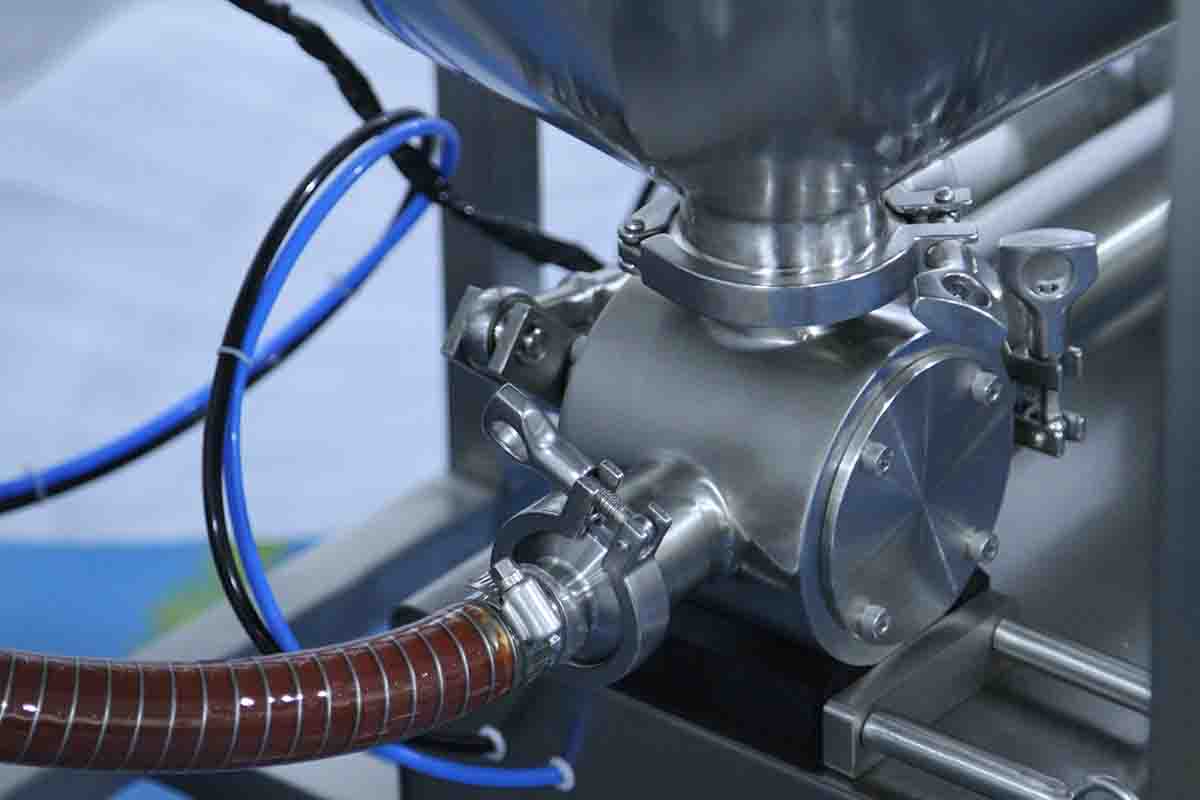

Rotary Valve

Key components that control the material flow of filling machines

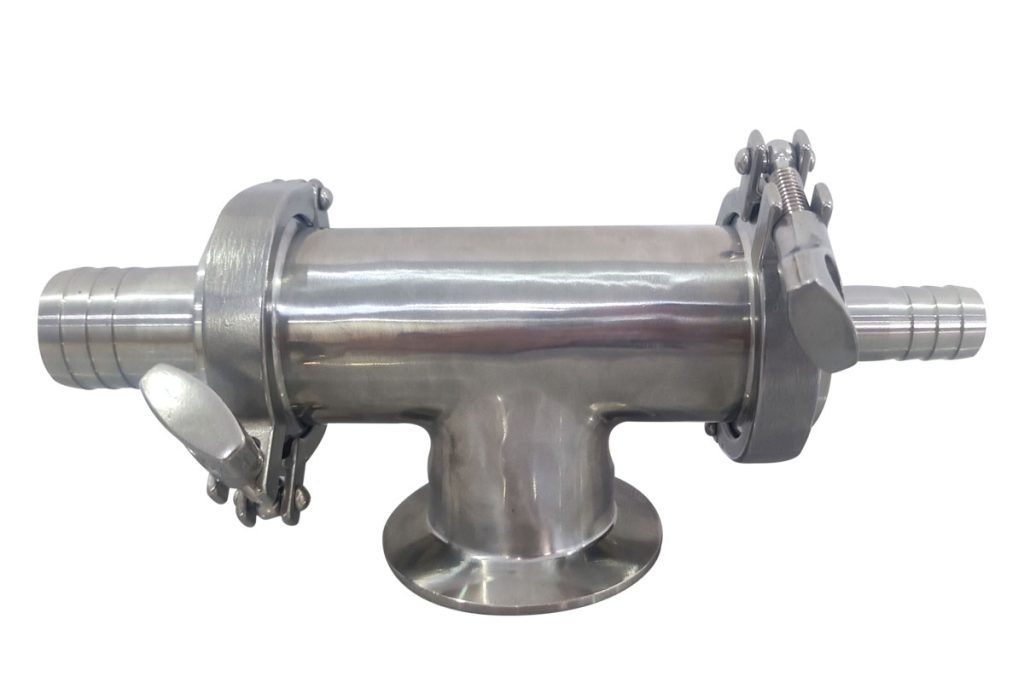

Three-Way Non-Return Valve for Filling Machines

Control the material flow direction of the filling machine and prevent backflow to ensure accurate and stable filling process.

Optional Configuration

In addition, these machines also have the following features:
·SVFA series machines are controlled by compressed air, so they are suitable in explosion-resistant or moist environments.
·Because of the pneumatic controls and mechanical positioning, this series has a high filling accuracy.
·The filling volume is adjusted using screws and the counter, which provides ease of adjustment and allows the operator to read the real-time filling volume on the counter.
·When you need to stop the machine in an emergency, push the URGENT button. The piston will go back to its initial location and the filling will be stopped immediately.
·Two filling modes for you to choose—‘Manual’ and ‘Auto’.
·Equipment malfunction is extremely rare.

The food-grade silicone steel wire hose of the filling machine

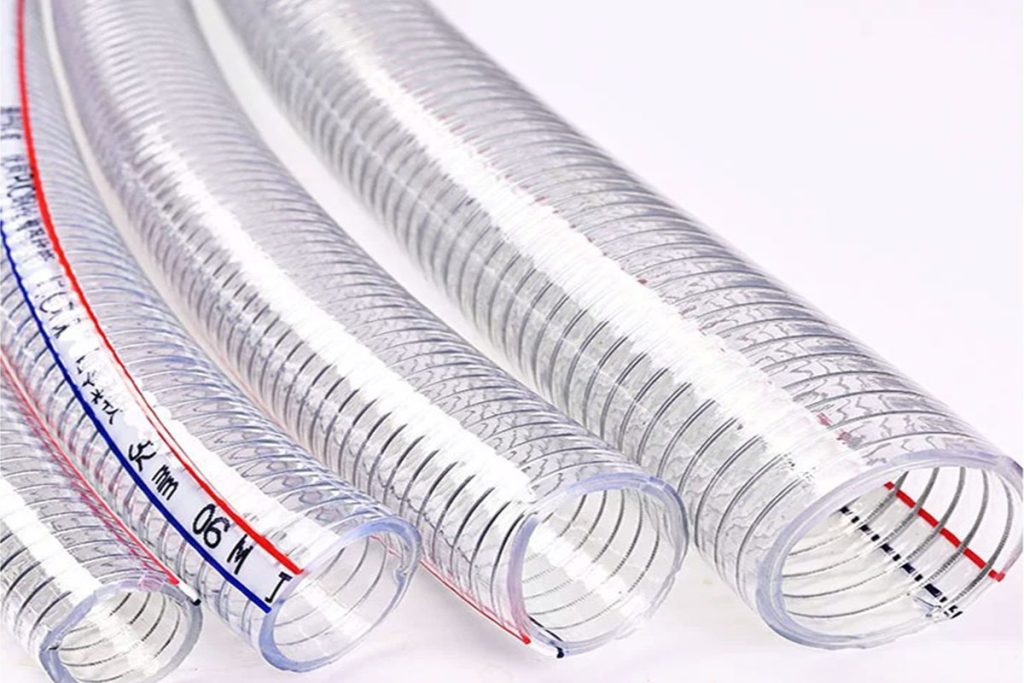

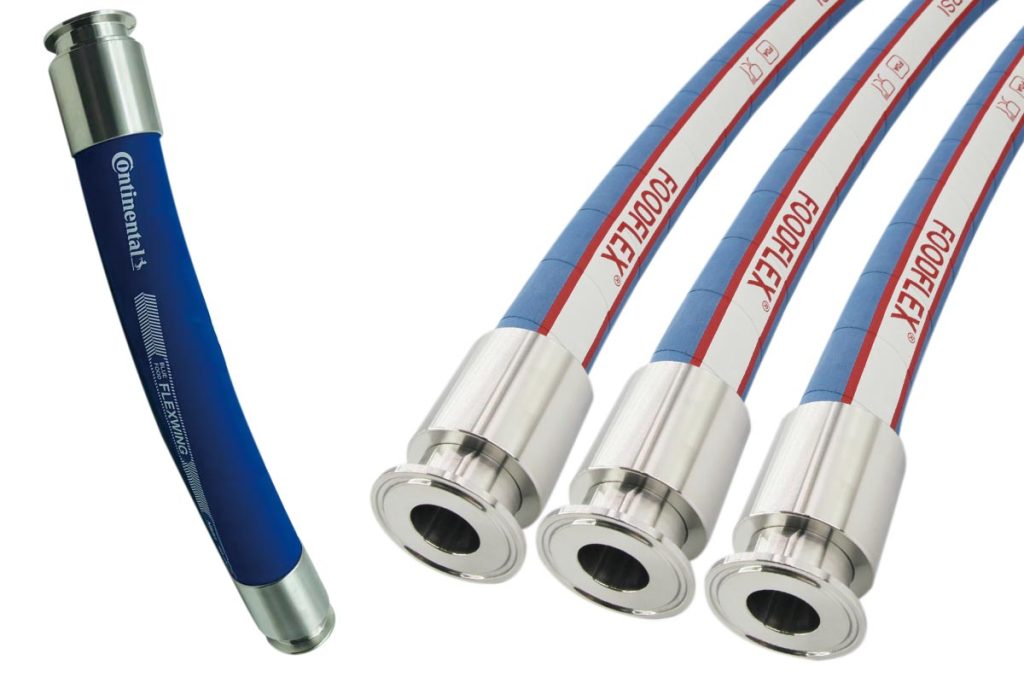

the food grade rubber steel wire hose of the filling machine

Application Industry and Container

JKPACK Sauce paste filling machine series can adapt to filling various types of containers, such as bottles, bags, sachets, pouch,cup,can,etc.

and are suitable for various sauce paste product,such as chili sauce,hot sauce,tomato sauce,soy sauce ,thick sauce ,mushroom sauce,bbq sauce,chili pepper sauce,mustard sauce,soybean sauce,high viscosity paste,liquid paste,thick paste,tomato paste,cream paste,ginger garlic paste,chili paste,tooth paste,etc.
